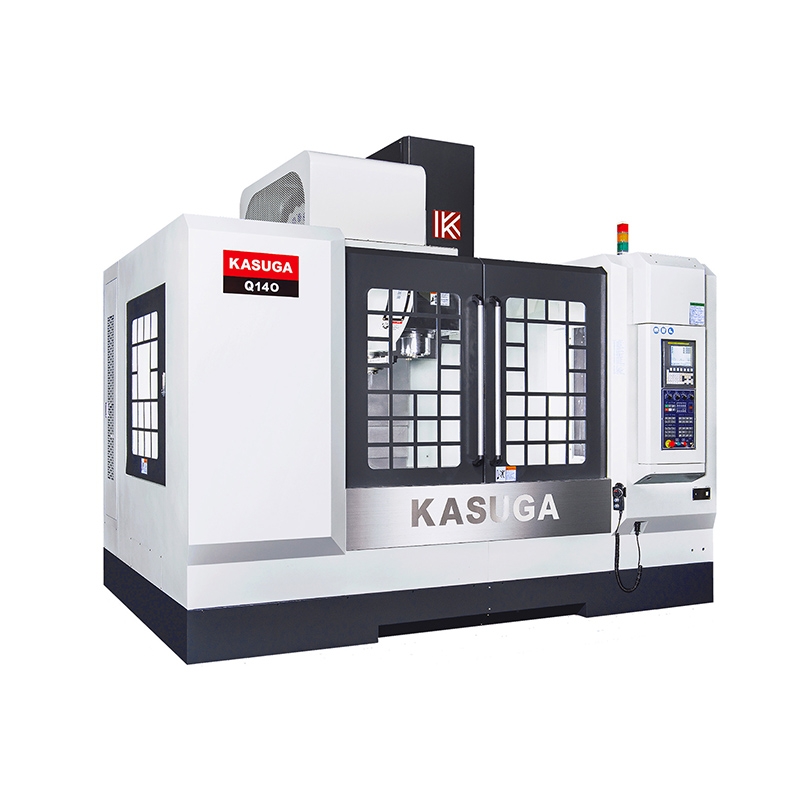

Product Name : Q120 Q140
Product Description

Description

  • Box ways on all X, Y, Z axis make the machine ideal for heavy cutting.
  • X, Y, Z axis travels are fully supported without overhang problem.
  • Oversized column and base structures provide a solid support.
  • The base is a box type double-wall structure that exhibits exceptional rigidity of structure.
ITEM / MODEL Q120 Q140
Table size 1300 x 650 mm 1500 x 650 mm
Maximum load 1200 kg 1400 kg
T-slot (Pitch x No. x W) 18 x 5 x 125 mm
X Axis travel 1250 mm 1450 mm
Y Axis travel 660 mm
Z Axis travel 660 mm
Spindle taper BT-50
Spindle servo motor-
cont. /30 min.
Belt type spindle - 15 / 18.5 kW
Gear drive spindle - 11 / 15 kW
Spindle speed Belt type spindle - 6000 rpm
Gear drive spindle - 6000 rpm
Spindle bearing (ID) 90 (100) mm
Spindle nose to table surface 125 ~ 785 mm
Spindle center to column guideway 700 mm
Table front edge to door 310 mm
Floor to table without leveling pads 900 mm
X/Y/Z Axis rapid feed rate  24 / 24 / 20 m/min
X/Y/Z Axis cutting feed rate 10 m/min
X/Y/Z Axis ballscrew 45 / 45 / 45 mm
Minimum setting 0.001 mm
X/Y/Z Axis feed motor (Fanuc) 4.0 / 4.0 / 9.0 kW
ATC – Arm type no. of tools BT-50 / 24T
Tool change time (tool to tool) 4 sec.
Max. tool diameter / length 125 / 300 mm
Max. tool diameter without adjacent tool 250 mm
Max. tool weight 15 kg
Coolant tank volume 350 L
Lubrication tank volume 4 L
Power required 40 KVA
Pressurized air 5.5 ~ 7 kg / cm²
Machine dimension 3400 x 3090 x 3150 mm 3600 x 3090 x 3150 mm
Machine weight 9300 kg 9900 kg
Controller 0i-MF / M80A / 828D

Standard Features

  • Full Enclosure Guard
  • Cutting coolant system
  • Automatic lubrication system
  • Spindle air blast system
  • Work lamp
  • Alarm lamp for abnormal situations
  • Indication lamp for dwell & end of job
  • Heat exchanger for electric cabinet
  • Chip auger
  • Toolbox with spanner & wrenches
  • Water gun / air gun
  • M.P.G.
  • Machine inspection lists
  • Operator manuals
  • Controller manuals and circuit diagram
  • Auto Power off
  • RS-232 terminal interface
  • Leveling bolts & pads
  • Spindle oil cooler
