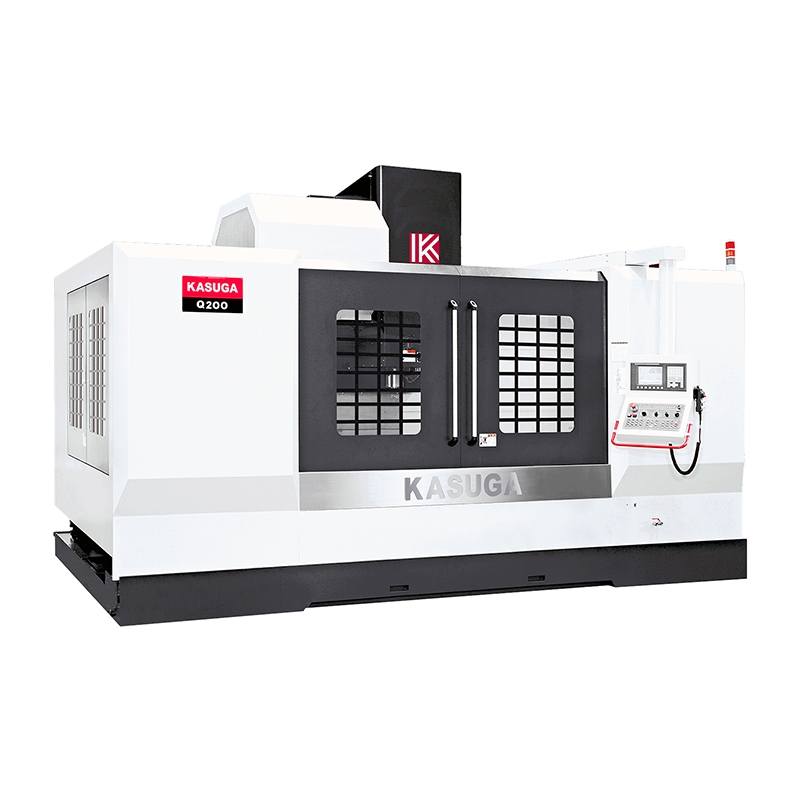

Product Name : Q160(G) / Q200(G)
Product Description

Description

  • Box ways on all X, Y, Z axis make the machine ideal for heavy cutting.
  • X, Y, Z axis travels are fully supported without overhang problem.
  • Oversized column and base structures provide a solid support.
  • The base is a box type double-wall structure that exhibits exceptional rigidity of structure.
ITEM / MODEL Q160 Q200
Table size 2015 x 925 mm 2420 x 925 mm
Maximum load 2500 kg 3000 kg
T-slot (Pitch x No. x W) 24 x 5 x 160 mm
X Axis travel 1600 mm 2050 mm
Y Axis travel 865 mm
Z Axis travel 815 mm
Spindle taper BT-50
Spindle servo motor-
cont. /30 min.
Belt type spindle - 18.5 / 22 kW
Gear drive spindle - 11 / 15 kW
Spindle speed Belt type spindle - 6000 rpm
Gear drive spindle - 6000 rpm
Spindle bearing (ID) 90 (100) mm
Spindle nose to table surface 200 ~ 1015 mm
Spindle center to column guideway 1005 mm
Table front edge to door 500 mm
Floor to table without leveling pads 925 mm
X/Y/Z Axis rapid feed rate  20 / 20 / 15 m/min
X/Y/Z Axis cutting feed rate 10 m/min
X/Y/Z Axis ballscrew 55 / 55 / 55 mm
Minimum setting 0.001 mm
X/Y/Z Axis feed motor (Fanuc) 7.0 / 7.0 / 9.0 kW
ATC – Arm type no. of tools BT-50 / 40T
Tool change time (tool to tool) 4 sec.
Max. tool diameter / length 125 / 300 mm
Max. tool diameter without adjacent tool 250 mm
Max. tool weight 15 kg
Coolant tank volume 500 L 550 L
Lubrication tank volume 4 L
Power required 50 KVA
Pressurized air 5.5 ~ 7 kg / cm²
Machine dimension 4600 x 4030 x 3520 mm 5200 x 4030 x 3520 mm
Machine weight 15200 kg 18000 kg
Controller 0i-MF / M80A / 828D

Standard Features

  • Full Enclosure Guard
  • Cutting coolant system
  • Automatic lubrication system
  • Spindle air blast system
  • Work lamp
  • Alarm lamp for abnormal situations
  • Indication lamp for dwell & end of job
  • Heat exchanger for electric cabinet
  • Chip auger
  • Toolbox with spanner & wrenches
  • Water gun / air gun
  • M.P.G.
  • Machine inspection lists
  • Operator manuals
  • Controller manuals and circuit diagram
  • Auto Power off
  • RS-232 terminal interface
  • Leveling bolts & pads
  • Spindle oil cooler
