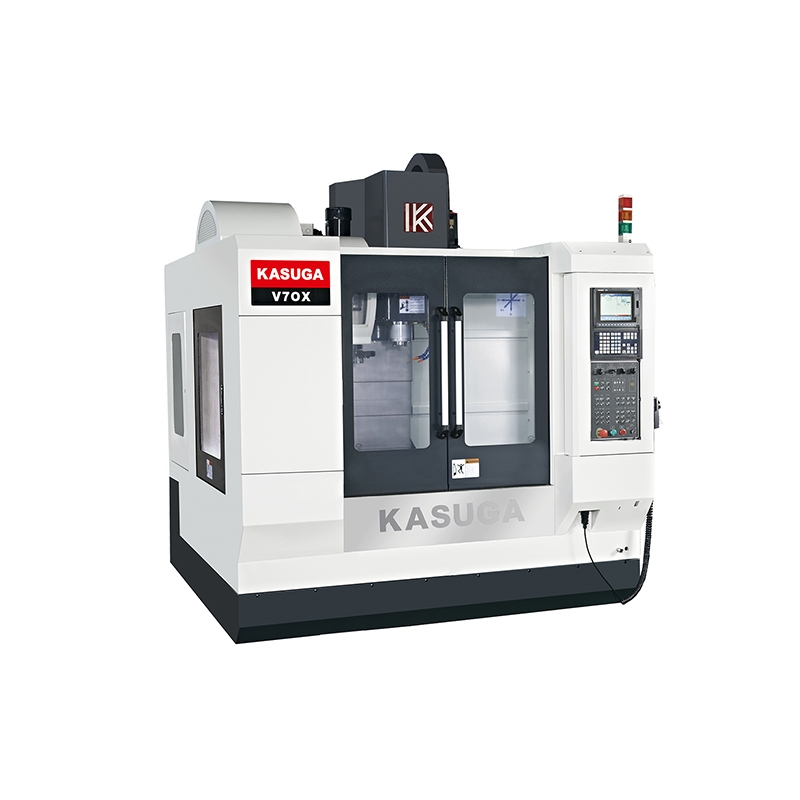

Product Name : V50 V50X V70 V70X
Product Description

Description

  • Optimum Rigid Structure / High-speed / High-precision.
    The big span structure of Y axis wider junction between column and base provides the most stable.
  • High speed / High rigidity, and high load transmission system on three axes.
    Width of linear slideway used on KASUGA V50/V70 is 30/30/35 mm on three axes compared with that of other competitors by which ensures better rigidity and higher stability.
  • High speed A.T.C
    Tool change time up to 1.6 sec. and highly reliable automatic tool change mechanism cooperated with rapid traverse of three axes shorten the machining time enhancing the output.
ITEM / MODEL V50 V50X V70 V70X
X/Y/Z Axis travel 510 / 430 / 460 mm 700 / 430 / 460 mm
Spindle nose to table surface 120 ~ 580 mm
Table height from floor 890 mm
Table size 650 x 400 mm 850 x 400 mm
Spindle speed Belt type spindle
10000 rpm (12000 opt.)
Direct drive spindle
12000 rpm (15000 opt.)
Belt type spindle
10000 rpm (12000 opt.)
Direct drive spindle
12000 rpm (15000 opt.)
Spindle taper (Tool shank) BT-40 (CAT / DIN / HSK / BBT opt.)
Max. loading capacity 350 kg (Max. feed rate 48 m/min)
450 kg (Max. feed rate 36 m/min)
X/Y/Z Axis rapid feed rate 48 / 48 / 48 m/min
X/Y/Z Axis cutting feed rate 24 / 24 / 24 m/min
X/Y/Z Axis linear guide 30 / 30 / 35 mm
X/Y/Z Axis ballscrew 32 / 32 / 32 mm
Spindle motor (Mitsubishi) 5.5 / 7.5 kW
X/Y/Z Axis servo motor (Mitsubishi) 1.5 / 1.5 / 3.0 kW
X/Y/Z Axis positioning ±0.004 mm
X/Y/Z Axis repeatability ±0.002 mm
ATC type / Magazine No. ARM 20T (24T opt.)
Tool change time 1.6 sec. (2.3 sec.)
Machine dimension 1900 x 2660 x 2545 mm 2100 x 2660 x 2545 mm
Machine weight 3070 kg 3370 kg
CNC Control M80-4A / 0i-MF / 828D / TNC620
V Standard VX Standard
Belt type spindle speed 10000 rpm Direct drive spindle speed 12000 rpm
--- Spindle oil cooler
Fully enclosure guard
3 Axes telescopic cover
Air blast through spindle
Spindle air sealing
Cutting coolant system
Cutting air blast system
Air gun and water gun
Operation status lamp and working lamp
M30 power off
MPG handwheel
RS232 interface
Rigid tapping
Automatic lubrication system
Heat exchanger for electrical cabinet
Tool box with tools and leveling bolts & pads
Chip flushing system
Operation manual
