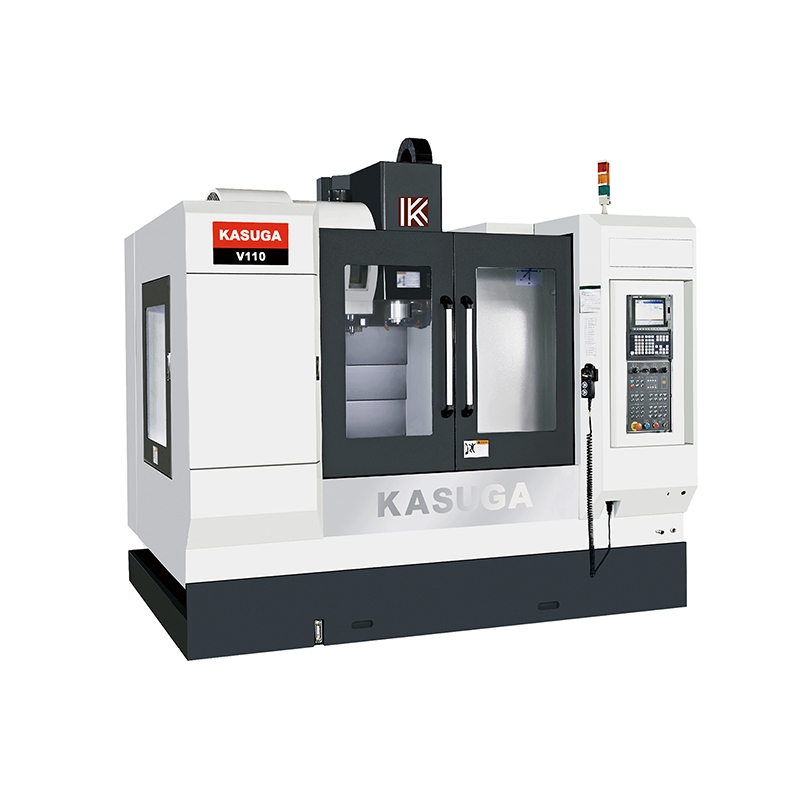

Product Name : V110(X) / V120(X)

Optimum Rigid Structure / High-speed / High-precision.
The big span structure of Y axis wider junction between column and base provides the most stable.
High speed / High rigidity, and high load transmission system on three axes.
Width of linear slideway used on KASUGA is 45 mm on all three axes compared with that of other competitors by which ensures better rigidity and higher stability.
High speed A.T.C
Tool change time up to 1.6 sec. and highly reliable automatic tool change mechanism cooperated with rapid traverse of three axes shorten the machining time enhancing the output.

ITEM / MODEL	V110	V110X	V120	V120X
X/Y/Z Axis travel	1120 / 610 / 575 mm		1220 / 610 / 575 mm
Spindle nose to table surface	125 ~ 700 mm
Table height from floor	920 mm
Table size	1250 x 550 mm		1350 x 550 mm
Spindle speed	Belt type 10000 rpm	Direct drive 12000 rpm	Belt type 10000 rpm	Direct drive 12000 rpm
Spindle taper (Tool shank)	BT-40 (BBT-40 / HSK-63A opt.)
Max. loading capacity	700 kg
X/Y/Z Axis rapid feed rate	48 / 48 / 36 m/min
X/Y/Z Axis cutting feed rate	24 / 24 / 18 m/min
X/Y/Z Axis linear guide	45 / 45 / 45 mm
X/Y/Z Axis ballscrew	40 / 40 / 40 mm
Spindle motor	7.5 / 11 kW
X/Y/Z Axis servo motor	2.0 / 2.0 / 3.0 kW
ATC type / Magazine No.	ARM 24T
Tool change time	2.3 sec.
Machine dimension	3400 x 2670 x 2850 mm		3500 x 2670 x 2850 mm
Machine weight	5530 kg		5680 kg
CNC Control	MITSUBISHI / FANUC / SIEMENS / HEIDENHAIN

V Standard	VX Standard
Belt type spindle speed 10000 rpm	Direct drive spindle speed 12000 rpm
---	Spindle oil cooler
Fully enclosure guard
3 Axes telescopic cover
Air blast through spindle
Spindle air sealing
Cutting coolant system
Cutting air blast system
Air gun and water gun
Operation status lamp and working lamp
M30 power off
MPG handwheel
Rigid tapping
Automatic lubrication system
Heat exchanger for electrical cabinet
Tool box with tools and leveling bolts & pads
Chip flushing system
Operation manual
