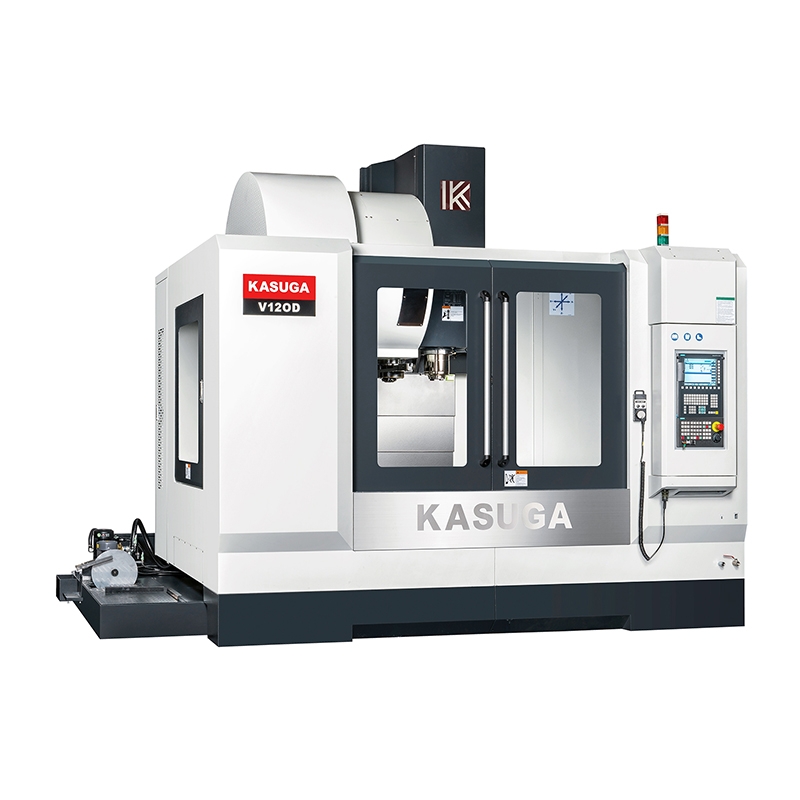

Product Name : V140(X/D)
Product Description

Description

  • Optimum Rigid Structure / High-speed / High-precision.
    The big span structure of Y axis wider junction between column and base provides the most stable.
  • High speed / High rigidity, and high load transmission system on three axes.
    Width of linear slideway used on KASUGA is 55mm compared with that of other competitors by which ensures better rigidity and higher stability.
  • High speed A.T.C
    Tool change time up to 2.3 sec. and highly reliable automatic tool change mechanism cooperated with rapid traverse of three axes shorten the machining time enhancing the output.
ITEM / MODEL V140 V140X V140D
X/Y/Z Axis travel 1400 / 650 / 660 mm
Spindle nose to table surface 110~770 mm 65~725 mm
Table height from floor 950 mm
Table size 1500 x 600 mm
Spindle speed Belt type spindle
10000 rpm (12000 opt.)		 Direct drive spindle
12000 rpm (15000 opt.)		 Belt type spindle
6000 rpm (8000 opt.)
Spindle taper (Tool shank) BT-40 BT-50
(CAT / DIN / HSK / BBT opt.)
Max. loading capacity 800 kg (Max. feed rate 36 m/min)
1200 kg (Max. feed rate 24 m/min)
X/Y/Z Axis rapid feed rate 36 / 36 / 30 m/min
X/Y/Z Axis cutting feed rate 18 / 18 / 15 m/min
X/Y/Z Axis linear guide 55 / 55 / 55 mm
X/Y/Z Axis ballscrew 45 / 45 / 45 mm
Spindle motor (Mitsubishi) 11 / 15 kW 15 / 18.5 kW
X/Y/Z Axis servo motor (Mitsubishi) 3.0 / 3.5 / 4.5 kW
X/Y/Z Axis positioning ±0.004 mm
X/Y/Z Axis repeatability ±0.002 mm
ATC type / Magazine No.) ARM 24T
28T (opt.) 30T (opt.)
Tool change time 2.3 5.0
Machine dimension 4000 x 2700 x 3100 mm
Machine weight 7500 kg
CNC Control M80A / 0i-MF / 828D / TNC620
V Standard VX Standard VD Standard
Belt type spindle speed 10000 rpm Direct drive spindle speed 12000 rpm Belt type spindle speed 6000 rpm
Spindle oil cooler
Fully enclosure guard
3 Axes telescopic cover
Air blast through spindle
Spindle air sealing
Cutting coolant system
Cutting air blast system
Air gun and water gun
Operation status lamp and working lamp
M30 power off
MPG handwheel
RS232 interface
Rigid tapping
Automatic lubrication system
Heat exchanger for electrical cabinet
Tool box with tools and leveling bolts & pads
Chip flushing system
Operation manual
>
